RC522 Write/Read Module for Arduino,UART Interface

Name: RC522 WriteRead Module for ArduinoUART Interface
Brand: SeabreezeRFID
Price: 1 USD

Place of Origin : China Mainland

Brand Name : SeabreezeRFID

Certification : RoHS

Model Number : SM522T

Add time : 2014-01-17 10:39:56

MOQ : 1 piece

Packaging Details : 1piece/carton

Delivery Time : In stock

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 1000pcs/month or Specify the number

Contact Now

RC522 Write/Read Module for Arduino,UART Interface

Features

Module have own CPU control, without written protocol, the device via a serial port connection module immediately

Module fully serial port control (USB/Ethernet turn serial port), without complex SPI, any platform system seamlessly, compatible with any system with the serial port (51, ARM, Linux, the Arduino, Windows, etc.)

Only in accordance with the simple command, RFID module can easily operate the IC card reading, writing, add and subtract values (but not modify the IC card ID number)

Module automatically read the IC card ID number ((when energized, the IC card is near, IC card read automatically hexadecimal ID number, ID number issued via a serial port, need not send command)

Modules have multiple instruction and single instruction to read and write functions at the same time, the user can through an instruction is complete to read or write operation.

**Electrical parameters**
Item	Parameters
Working Current	13-26mA/DC 3.3V
Idle Current	10-13mA/DC 3.3V
Peak current	<30mA
Operating Frequency	13.56MHz
Protocol standard	ISO 14443 TypeA
Support card	1 S50/S70 (4 bytes ID number)
Read distance	5cm
Interface	UART TTL
Card reading speed	read ID number 7 times/second, read data block 3 times/second
Dimensions	31.5mm×50mm
Environmental Operating temperature	-20℃~+80℃
Environment Storage temperature	-40℃~+85℃
Relative Humidity	5%~95%
Module Interface SPI Parameters
Data Transfer Rate	Max.10Mbit/s

RC522 Write/Read Module for Arduino,UART Interface

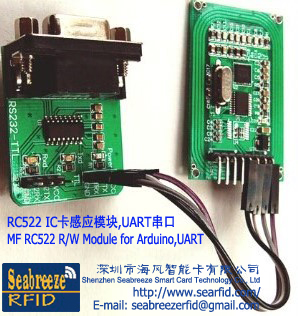

RC522 Write/Read Module for Arduino,UART Interface Images
