Impinj UHF Dry Inlay, Impinj B41 Inlay, Impinj B42 Inlay, Impinj B43 Inlay, Impinj B44 Inlay, Impinj B45 Clear Dry Inlay

Name: Impinj UHF Dry Inlay Impinj B41 Inlay Impinj B42 Inlay Impinj B43 Inlay Impinj B44 Inlay Impinj B45 Clear Dry Inlay
Brand: SeabreezeRFID
Price: 1 USD

Impinj UHF Dry Inlay, Impinj B41 Inlay, Impinj B42 Inlay, Impinj B43 Inlay, Impinj B44 Inlay, Impinj B45 Clear Dry Inlay Manufactures

Place of Origin : China Mainland

Brand Name : SeabreezeRFID

Certification : RoHS

Model Number : Impinj B41, B42, B43, B44, B45 inlay

MOQ : 5000pcs

Packaging Details : roll or single

Delivery Time : Sample 6 work days

Payment Terms : T/T, Western Union, PayPal, MoneyGram

Supply Ability : 500,000pcs/month or Specify the number

Samples : Specify

Add time : 2014-01-12 16:39:56

Antenna material : Aluminum

Base material : PET

Chip : impinj Monza 4

Protocol standard : ISO18000-6C (EPC GEN2)

Sales : global

highest annual sales : 750,000 pcs

Contact Now

Impinj UHF Dry Inlay, Impinj Clear Dry Inlay, Impinj B41 Inlay, Impinj B42 Inlay, Impinj B43 Inlay, Impinj B44 Inlay, Impinj B45 Inlay

Description

Adaptation to frequency hopping mode, super-strong anti-jamming capability

Customized reading/writing standard data, quicker efficiency with professional application system

Valid communication distance of over 1 meters

Application in short distance, including labels of e-pass, medical care, pharmacy and asset tracking

**Inlay Parameter**

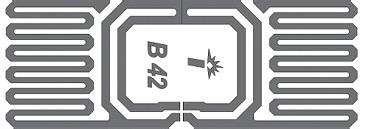

	B41	B42	B43	B44	B45
Protocol Standard	ISO 18000-6C (EPC GEN2)
Frequency	ISM 902~928MHz
Operating Mode	Frequency-Hopping Spread Spectrum, FHSS
Chip	impinj Monza 4	impinj Monza 4D, 4E, 4QT	impinj Monza 4		impinj Monza 4D, 4E, 4QT
Antenna Material	Aluminum
Operating Temperature	-20℃~+80℃
Dimension	22x8mm	22x8mm	24x24mm	24x24mm	16x18mm
Description	Adaptation to frequency hopping mode, super-strong anti-jamming capability. Customized R/W standard data, quicker efficiency with professional application system. Valid communication distance of over 1 meters. Application in short distance, including labels of e-pass, medical care, pharmacy and asset tracking.		Two independent antenna ports for high performance and well-round reading. 3D antenna technology enabling readers to read from different angles, thus significantly improving readability rate Dipole Antenna. Valid communication distance of over 2 meters (in relation to working environment).		The direction of the sensitivity of occasions, such as clothing,asset management and other occasions. In mid fond, small size applications, such as clothing, asset management and other occasions. External extension leads (True 3D) can be extended reading distance can be used for logistics.

Impinj Model Features Overview
Model	User Memory	EPC Memory	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Model	(bits)	(bits)	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Monza 5		up to 128	yes
Monza 4D	32	up to 128	yes	yes
Monza 4E	128	up to 496	yes	yes
Monza 4QT	512	up to 128	yes	yes	yes

Operating Conditions and Electrical Characteristics Overview
Parameter	Min	Typ	Max	Units
Operating Frequency	860		960	MHz
Read Sensitivity (Dipole Antenna)		-20		dBm
Write Sensitivity (Dipole Antenna)		-16		dBm
Operating Temperature	-40		85	ºC
Memory Retention (non-volatile)		50		Years
Memory Programming Cycles (non-volatile)		100,000		Cycles

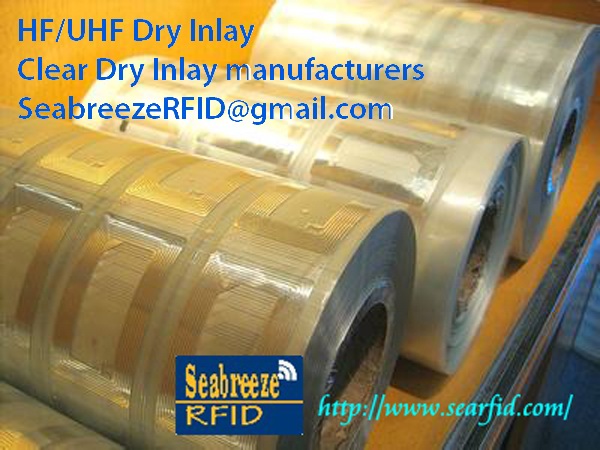

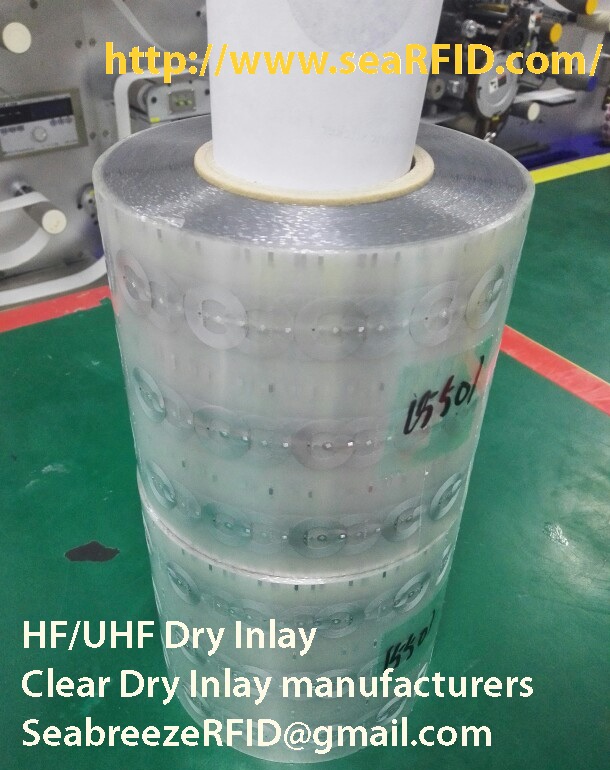

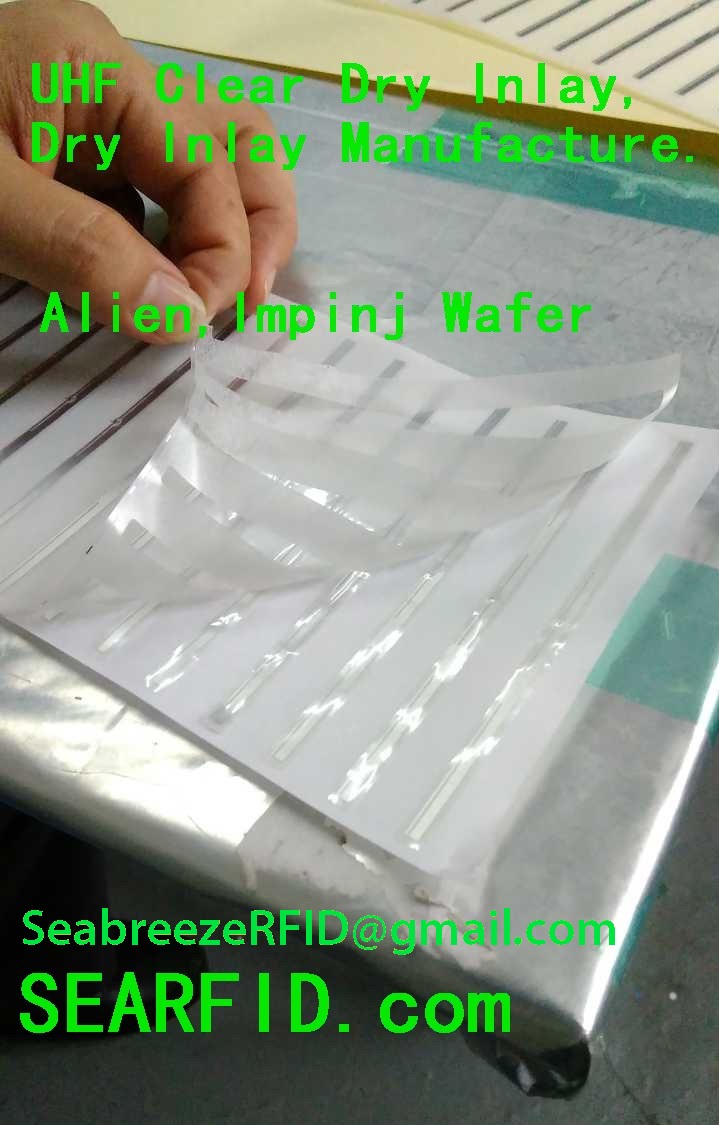

Impinj UHF Dry Inlay, Impinj B41 Inlay, Impinj B42 Inlay, Impinj B43 Inlay, Impinj B44 Inlay, Impinj B45 Clear Dry Inlay Images
